Product Description

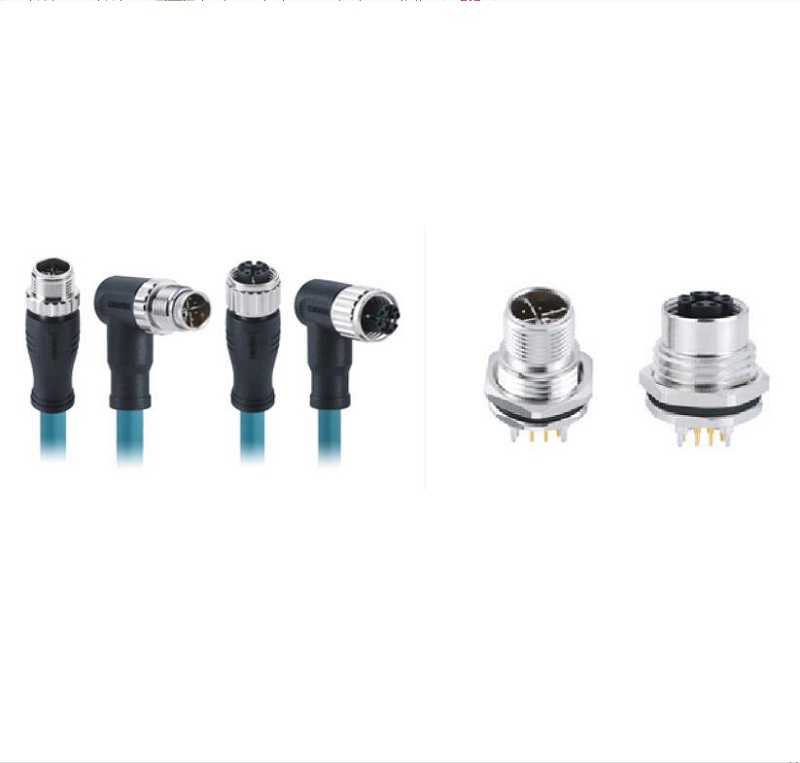

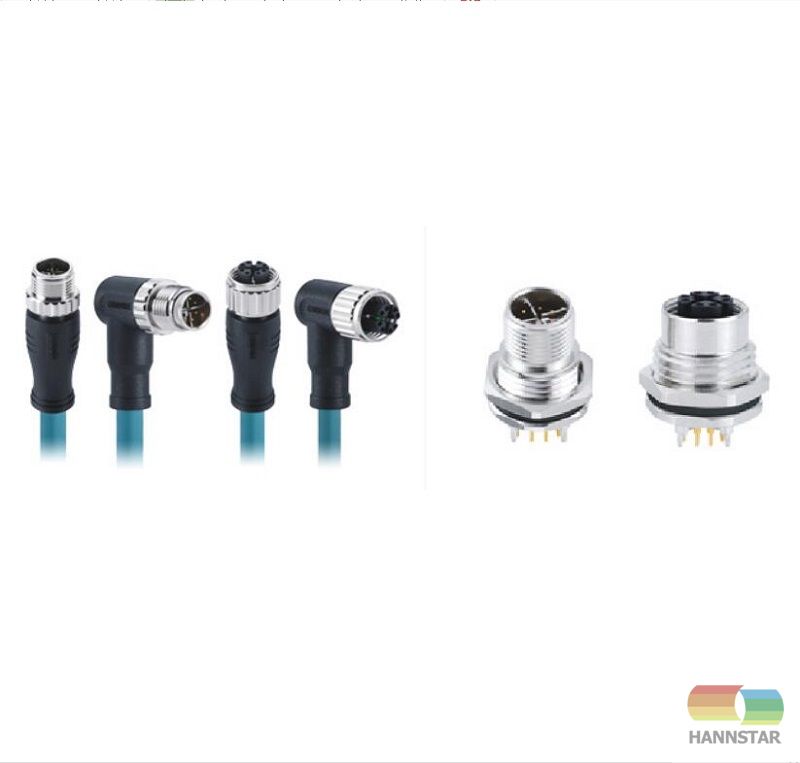

M12 X-Code Cable Cordset and M12 X-Code Panel Connectors

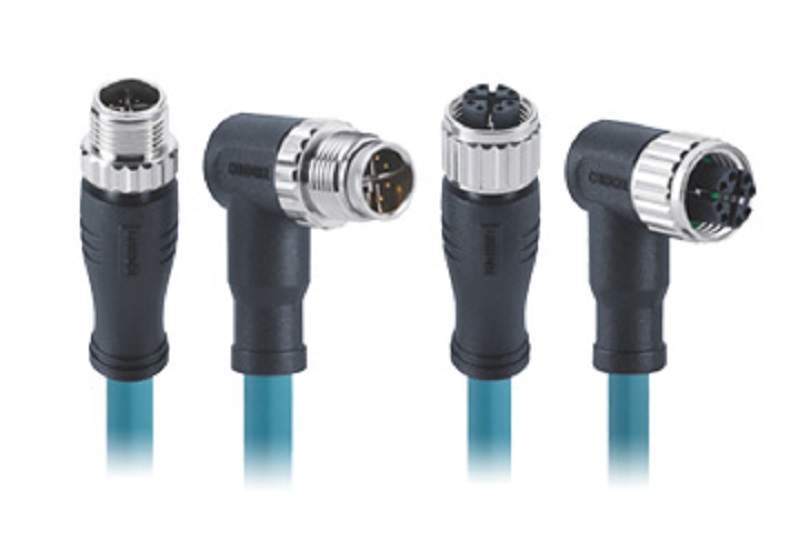

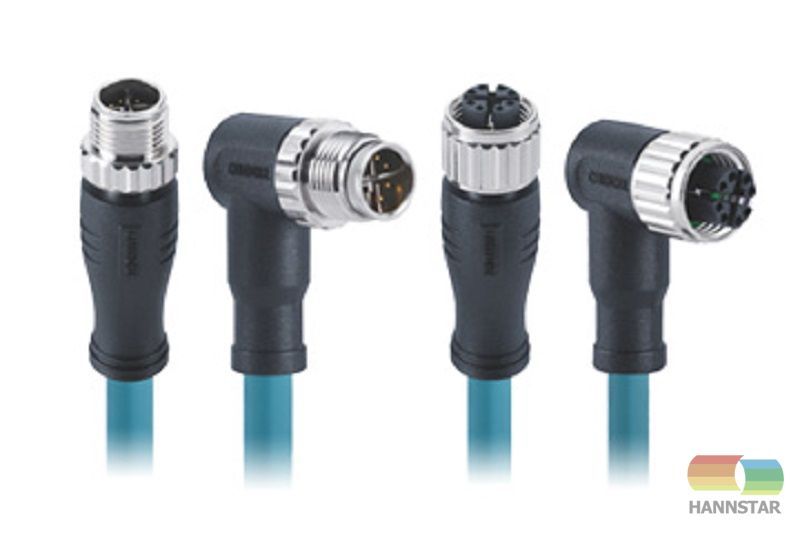

M12 X-Code Cable Cordset
● X-Coded 8 pin
● 500Mhz/ 10Gbps
● 360° EMI/EMC shielded
● Voltage rating: 48V
● Current rating: 0.5A
● Molded with CAT 6A or CAT 7 SFTP Ethernet cable
● Halogen Free, LSZH, Oil-Resistant, Hydrolysis Resistant, UV-Resistant, Flexible Drag Chain, Anti-Torsion
● Protection degree: IP67

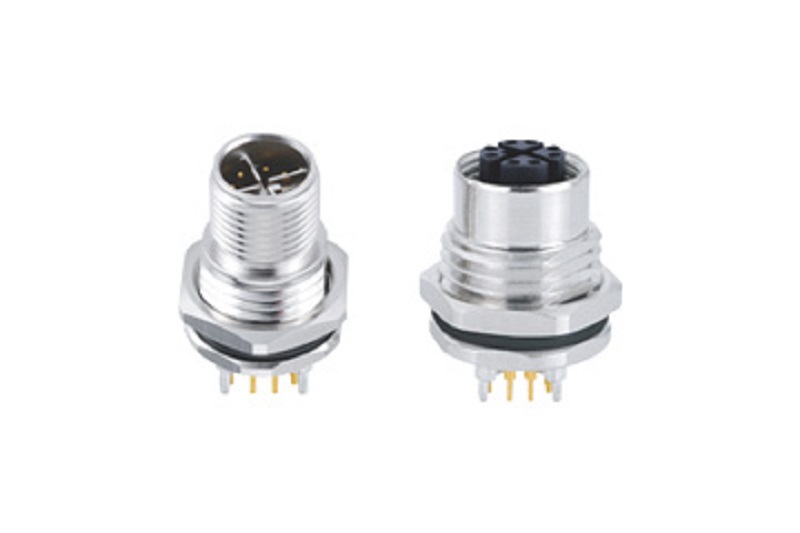

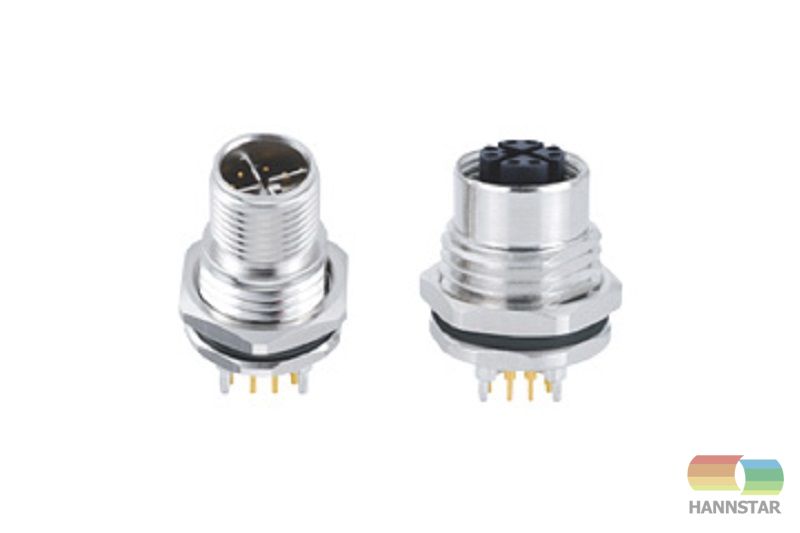

M12 X-Code Panel Connectors
● X-Coded 8 pin
● 500Mhz/ 10Gbps
● 360° EMI/EMC shielded
● Voltage rating: 48V
● Current rating: 0.5A
● PCB contacts, Solder type with (custom cable or wire specification)
● Brass, Zinc Alloy and Stainless steel screw option
● Protection degree: IP67
● 500Mhz/ 10Gbps
● 360° EMI/EMC shielded
● Voltage rating: 48V
● Current rating: 0.5A
● PCB contacts, Solder type with (custom cable or wire specification)
● Brass, Zinc Alloy and Stainless steel screw option
● Protection degree: IP67
