Product Description

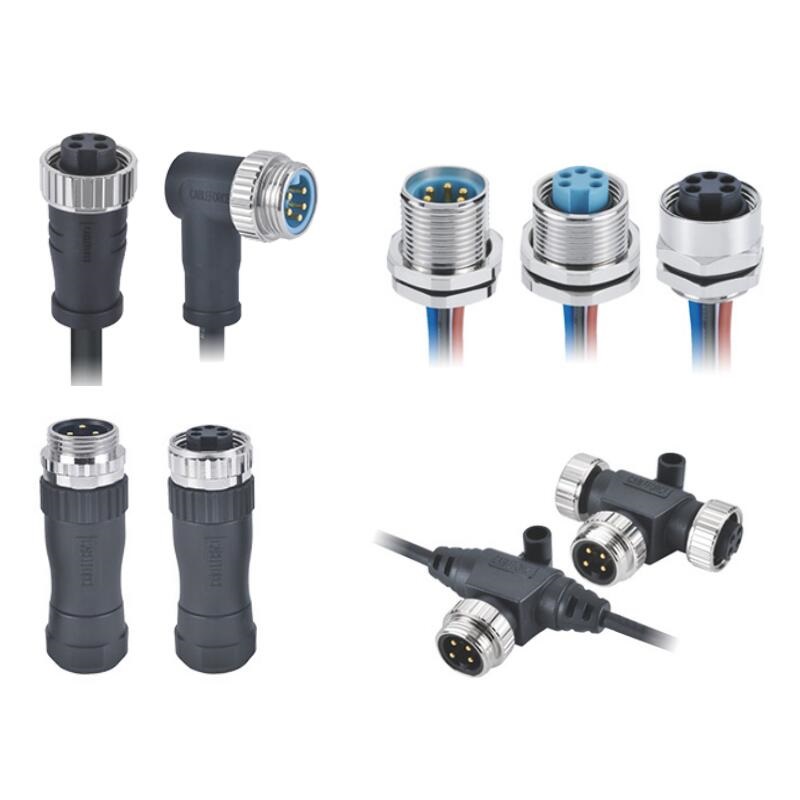

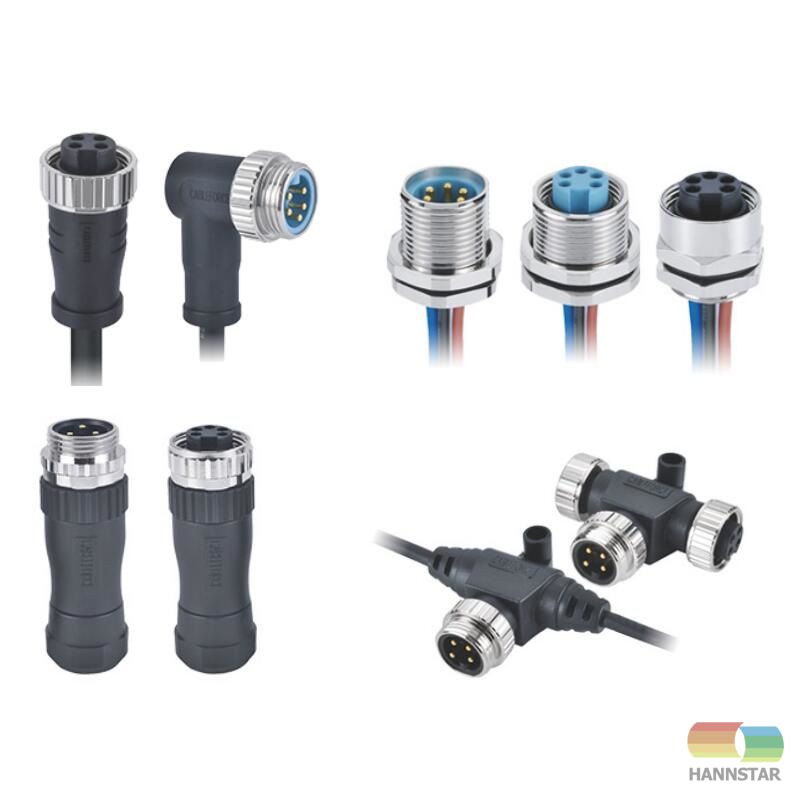

7/8" Mini-Change

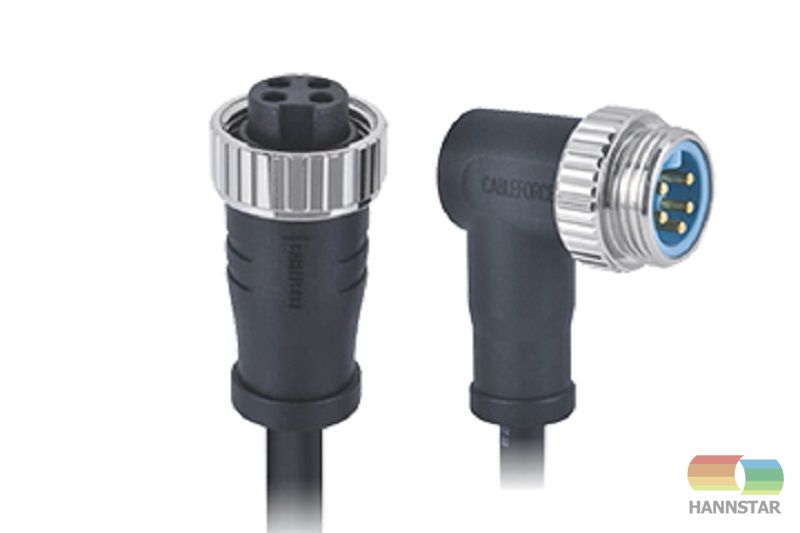

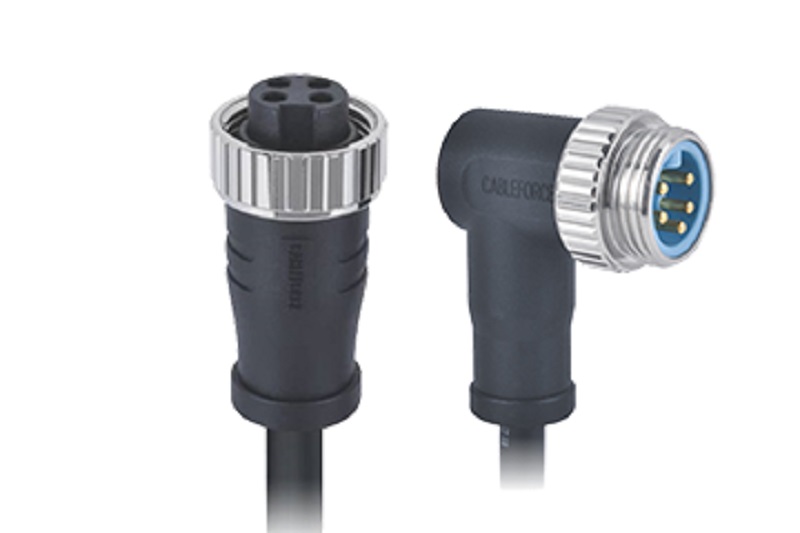

7/8" Mini-Change Cable Cordset
● 3 pin, 4 pin, 5 pin contacts option
● Custom cable specification, molded with PVC, PUR, TPE cable
● Oil-Resistant, Hydrolysis Resistant, UV-Resistant
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree
● Anti-vibration
● Custom cable specification, molded with PVC, PUR, TPE cable
● Oil-Resistant, Hydrolysis Resistant, UV-Resistant
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree
● Anti-vibration

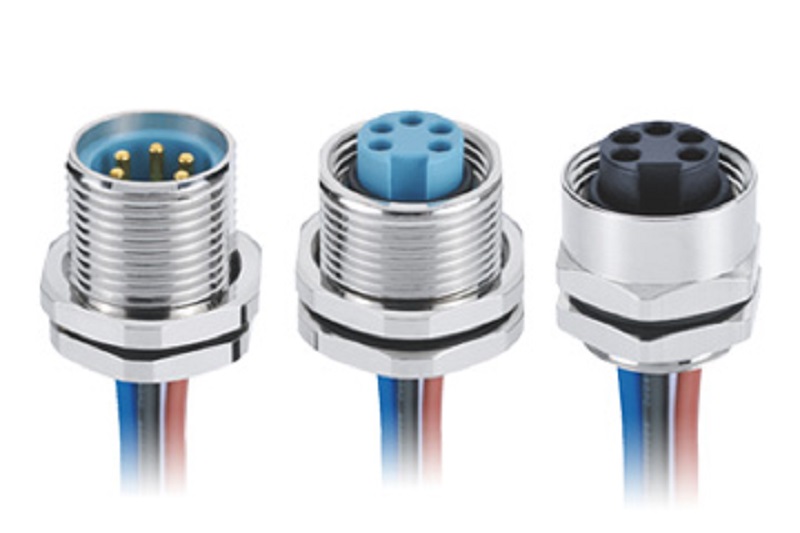

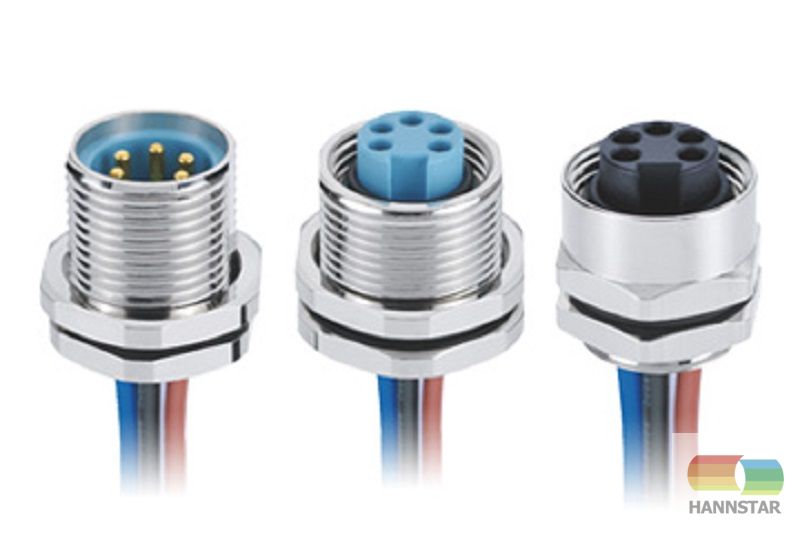

7/8" Mini-Change Panel Connectors
● 3 pin, 4 pin, 5 pin
● PCB contacts, Solder type with (custom wire specification)
● Brass and Stainless steel connector locking screws
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree
● PCB contacts, Solder type with (custom wire specification)
● Brass and Stainless steel connector locking screws
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree

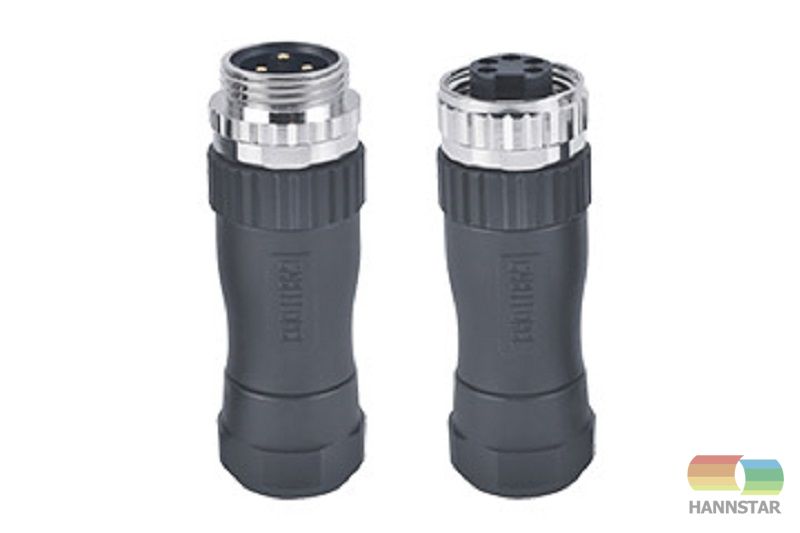

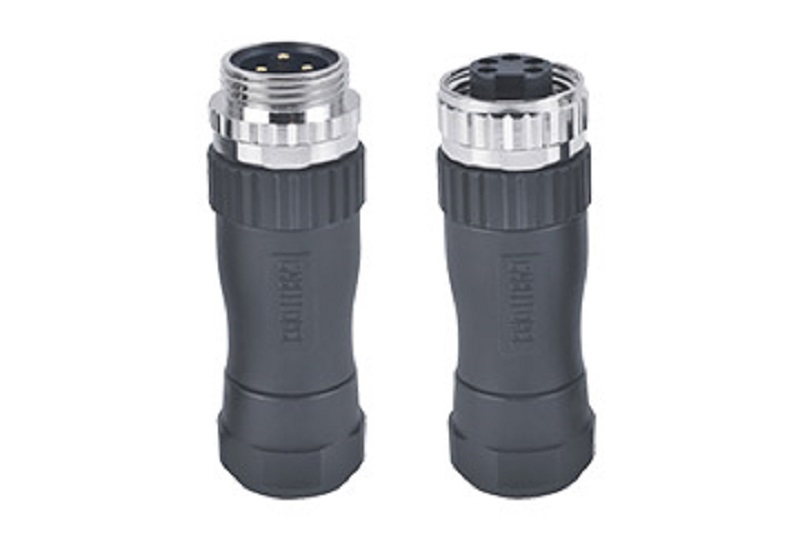

7/8" Mini Field Wireable Connectors
● 3 pin, 4 pin, 5 pin
● Screw wire termination
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree
● UL94 V-0
● Screw wire termination
● Voltage rating: 300V
● Current rating: 13A, 8A
● IP67 protection degree
● UL94 V-0

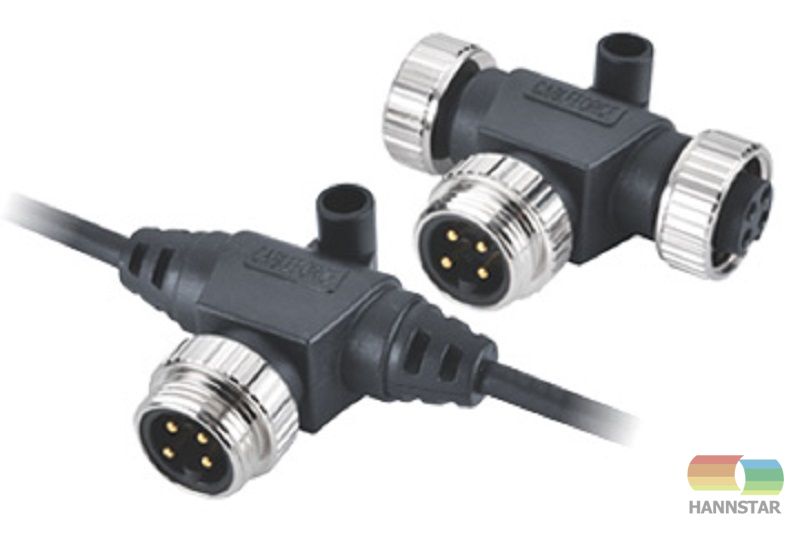

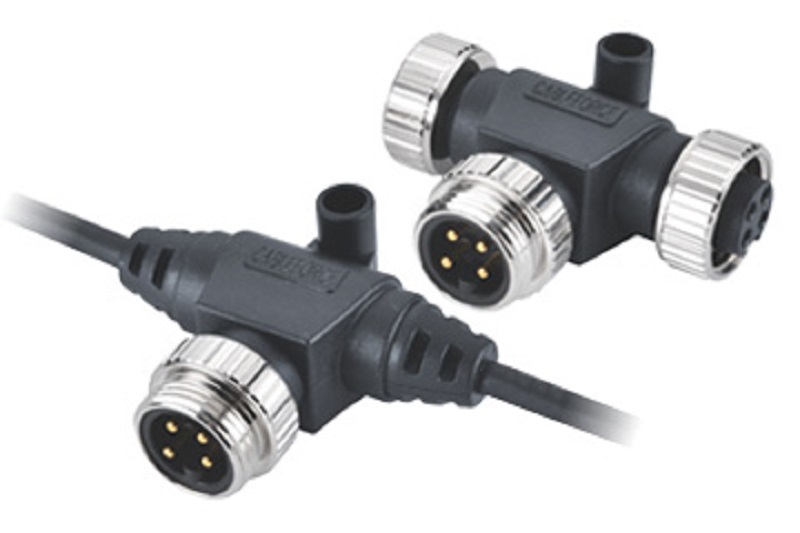

7/8" Mini Change T-Connectors
The 7/8" Mini-Change T-Connector split wires into 2 separate connectors, allowing installation of more single or power channel input or output devices to each port of hardwired distribution box. The T-Connectors are mainly designed for various Fieldbus system, such as the cabling of Devicenet, CANbus, Profibus, NMEA 2000 etc…
● Male - Female - Female configurable
● 3, 4, 5 poles are available
● Operating voltage 300V / 60V, Rated current 13A, 8A
● Temperature range: -40°C ~ + 80°C
● IP67 protection degree
● Male - Female - Female configurable
● 3, 4, 5 poles are available
● Operating voltage 300V / 60V, Rated current 13A, 8A
● Temperature range: -40°C ~ + 80°C
● IP67 protection degree
