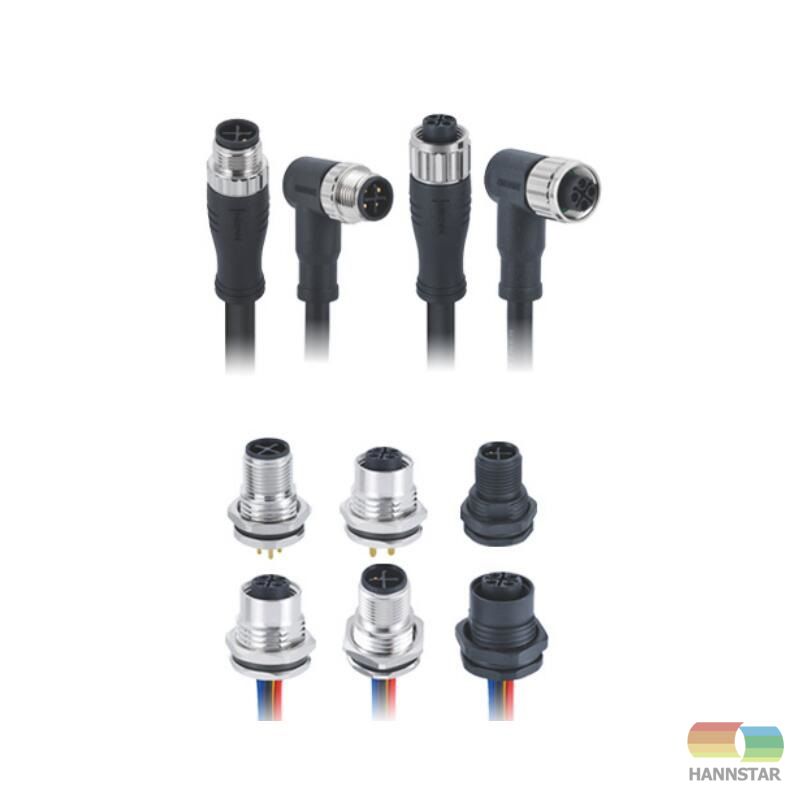

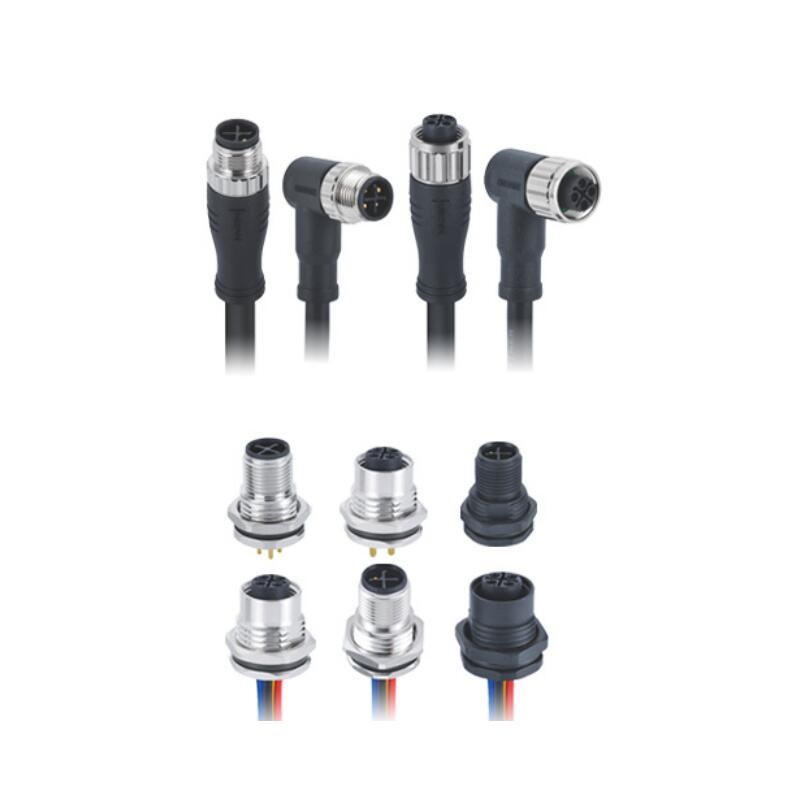

M12 S-Code Cable Cordset and M12 S-Code Panel Connectors

M12 S-Code Cable Cordset and M12 S-Code Panel Connectors

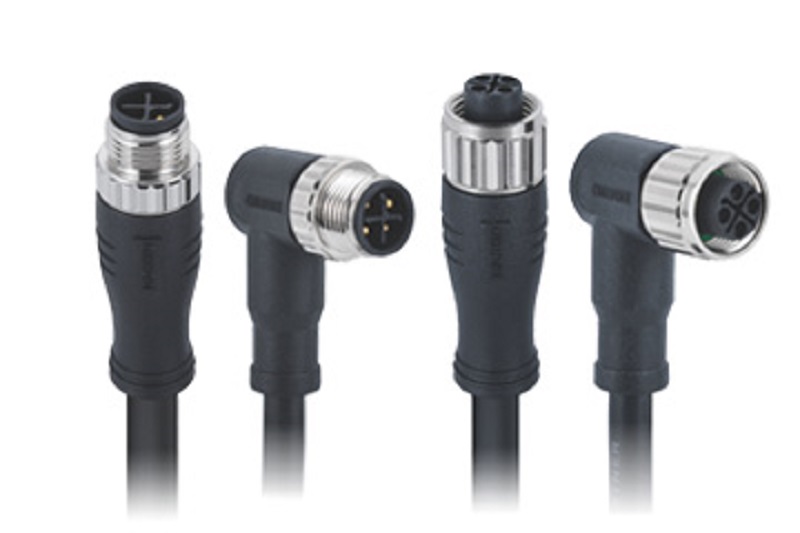

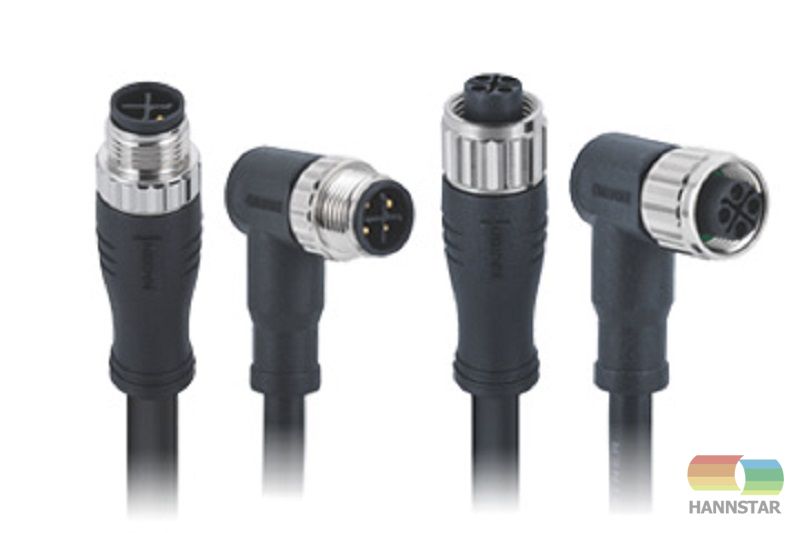

M12 S-Code Cable Cordset

● S-Code, 4Pin (3+PE)
● Rated: 630V AC/ 12A
● Molded with 4x16AWG (1.5mm2) PVC, PUR cable with Shielded option
● Custom cable specification, e.g. PVC or PUR cable material, shielding, lengths and high temperature
● Protection degree IP67, IP69K

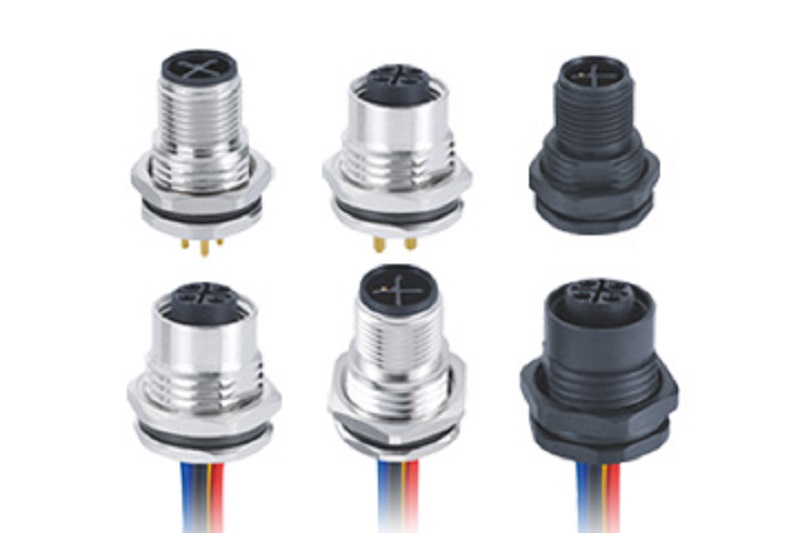

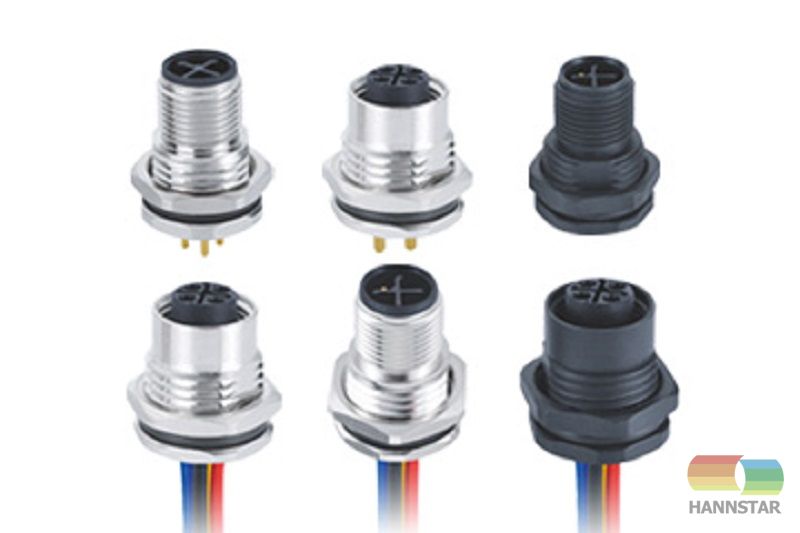

M12 S-Code Panel Connectors

● S-Code, 4Pin (3+PE)
● Rated: 630V AC/ 12A
● PCB contacts or Solder type with (custom cable or wire specification)
● Brass or Stainless steel screw option
● Protection degree: IP67, IP69K
● Anti-Vibration design
