Product Description

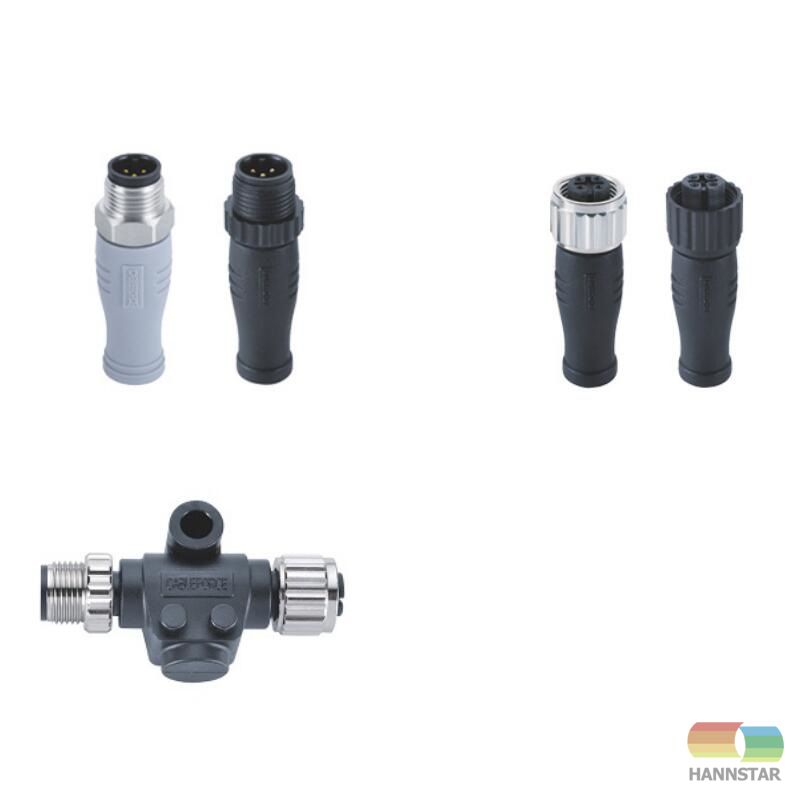

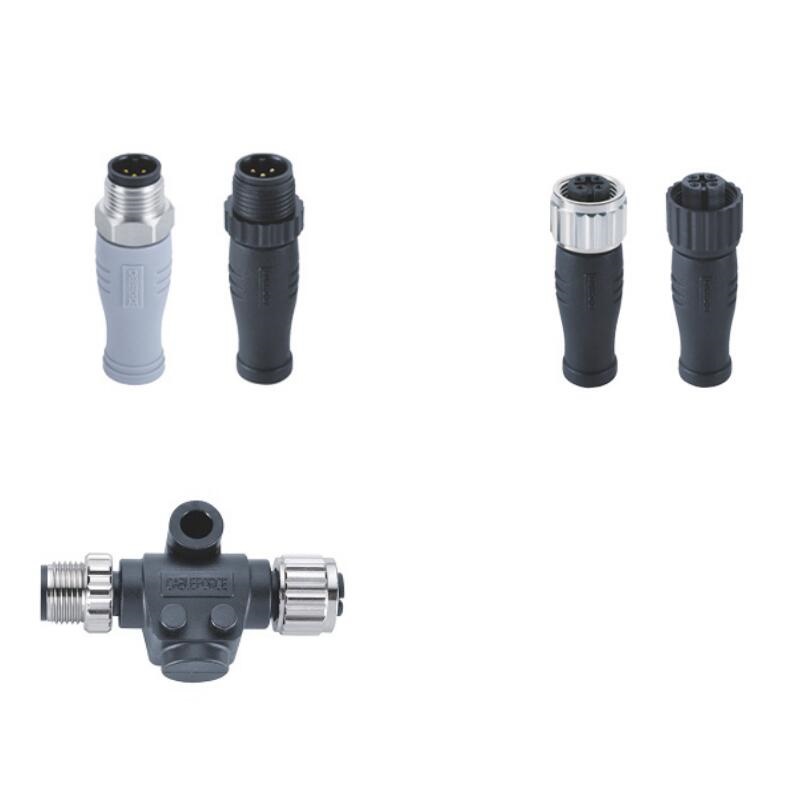

M12 Terminator

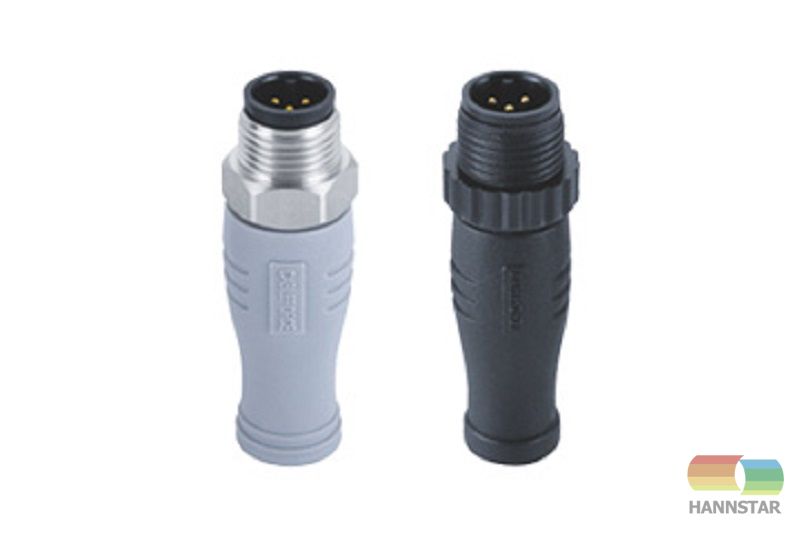

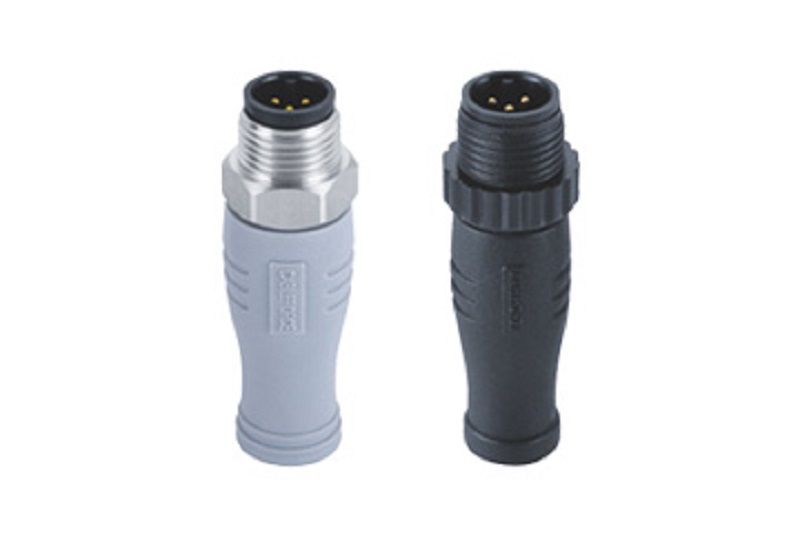

M12 Male Terminator 120 ohm
The M12 terminator is a M12 connector molded with a 120 ohm resistor inside, located at each end of the trunk line of DEVICENET, PROFIBUS DP, CANopen as well as NMEA 2000. Proper termination helps ensure signal integrity across the entire length of the cable.
● M12 A-Coded, B-Coded Male Plug
● 120 ohm Resistor, +/- 1 ohm, 1/4W
● 4-Pole, 5-Pole available for both male or female connector
● Ambient temperature: -40°C ~ + 80°C
● M12 A-Coded, B-Coded Male Plug
● 120 ohm Resistor, +/- 1 ohm, 1/4W
● 4-Pole, 5-Pole available for both male or female connector
● Ambient temperature: -40°C ~ + 80°C

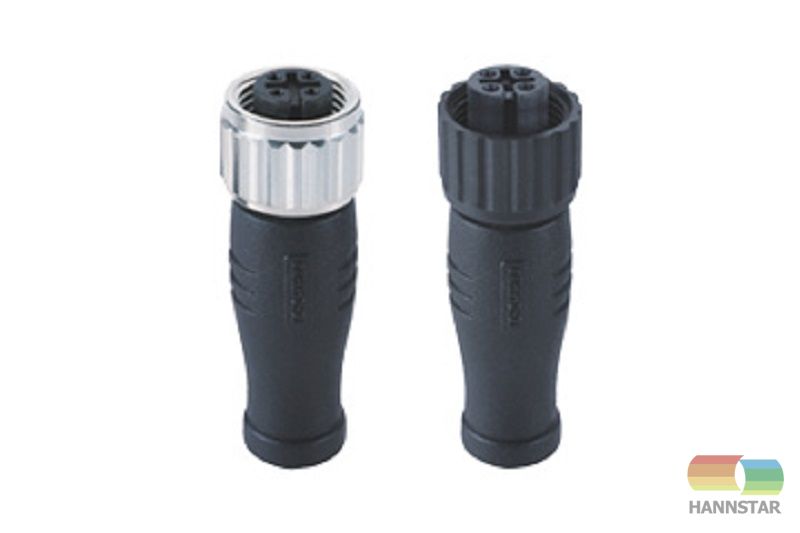

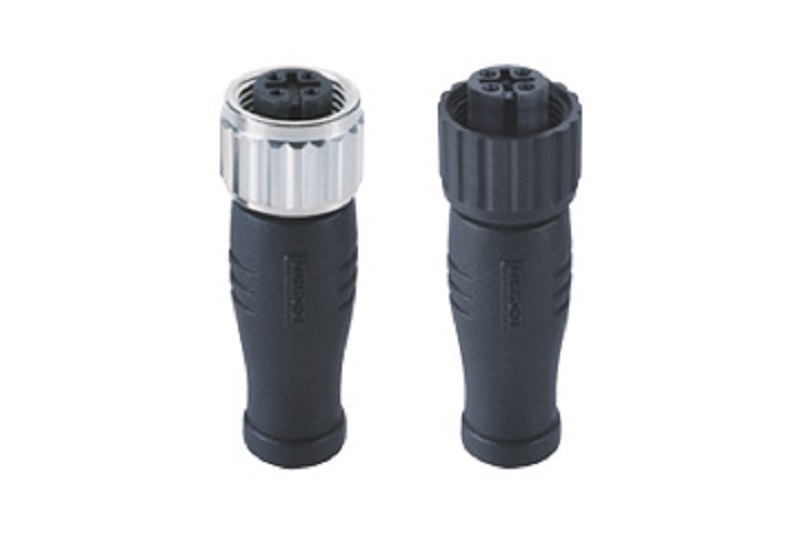

M12 Female Terminator 120 ohm resistor
The M12 terminator is a M12 connector molded with a 120 ohm resistor inside, located at each end of the trunk line of DEVICENET, PROFIBUS DP, CANopen as well as NMEA 2000. Proper termination helps ensure signal integrity across the entire length of the cable.
● M12 A-Coded, B-Coded Female Plug
● 120 ohm Resistor, +/- 1 ohm, 1/4W
● 4-Pole, 5-Pole available for both male or female connector
● Ambient temperature: -40°C ~ + 80°C
● M12 A-Coded, B-Coded Female Plug
● 120 ohm Resistor, +/- 1 ohm, 1/4W
● 4-Pole, 5-Pole available for both male or female connector
● Ambient temperature: -40°C ~ + 80°C

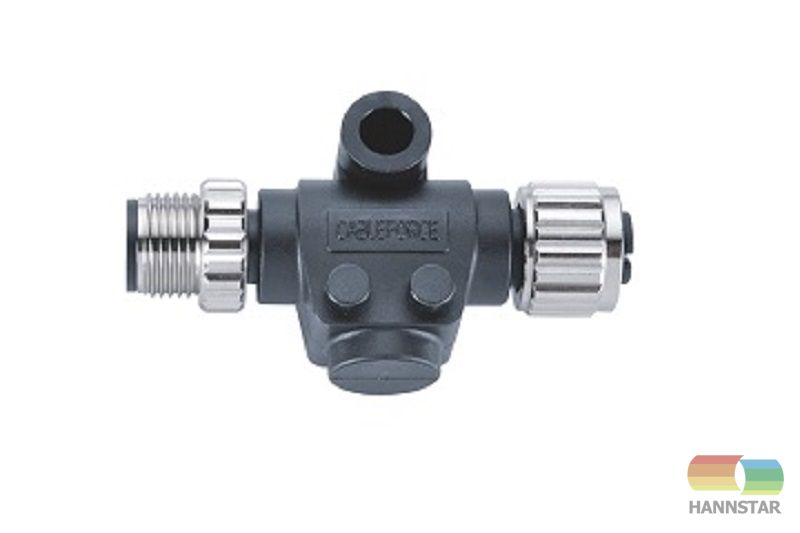

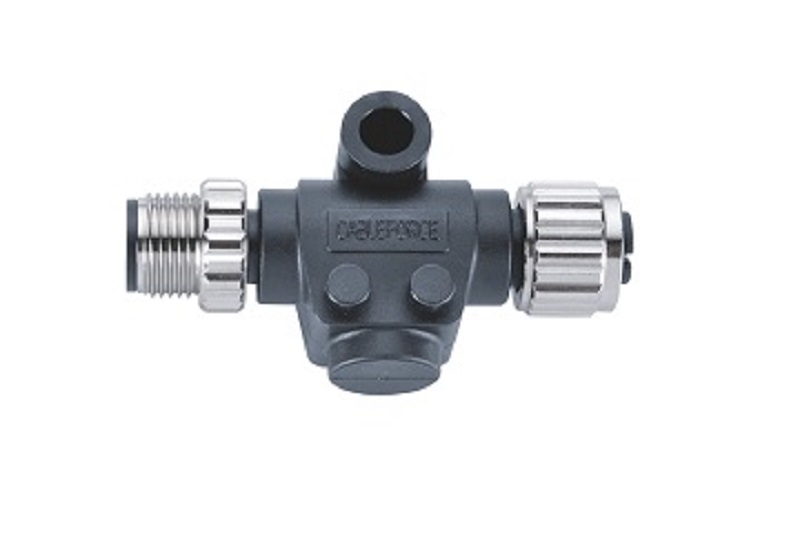

M12 Male-female Inline Terminator, 120 ohm
The Inline Terminator, is a special terminator with male and female connectors on either end. Allows direct connection to the device at the end of the NMEA 2000 backbone or DeviceNet trunk line. Simplifies installation by not requiring a T-Connector, Terminator, and Drop cable for the device at the end of the backbone.
● Connecting wiring can be customzied solution
● A, B, D Coding available
● Rated voltage：250V/60V/24V/12V, Rated current：4A
● Anti-vibration design
● IP67 protection degree
● 4 pole, 5 pole options
● Connecting wiring can be customzied solution
● A, B, D Coding available
● Rated voltage：250V/60V/24V/12V, Rated current：4A
● Anti-vibration design
● IP67 protection degree
● 4 pole, 5 pole options
